Name: UWB Channel 5 62506750M 3dBi omnidirectional small mushroom head ceilingmounted antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-11533-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 6250-6750MHz

VSWR : <2.0

Peak Gain : 3dBi

Impedance : 50

Contact Now

UWB Channel 5 6250-6750M omnidirectional small mushroom head ceiling-mounted antenna

1. Specification

A. Electrical Characteristics
Frequency	6250-6750MHz
S.W.R.	<= 1.8
Antenna Gain	3dBi
Polarization	Vertical
Horizontal Beamwidth	360°
Vertical Beamwidth	42-56°
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N-K connector
Dimension	φ86*40mm
Radome material	ABS
Weight	0.09Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

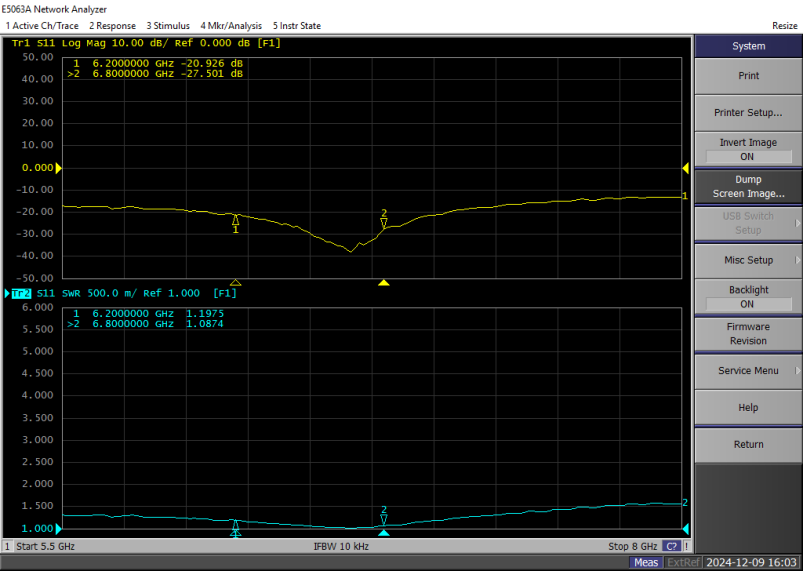

2.1 VSWR

UWB Channel 5 6250-6750M 3dBi omnidirectional small mushroom head ceiling-mounted antenna

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
