400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4006000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-11870-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 400-7000MHz

VSWR : <2.2

Peak Gain : 7dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	400-6000MHz
S.W.R.	<=3.0
Antenna Gain	7dBi
Polarization	Vertical
Horizontal Beamwidth	80-220°
Vertical Beamwidth	51-95°
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Cable Type	50-3 Type Cable
Dimension	2052501.5mm
Weight	0.17Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

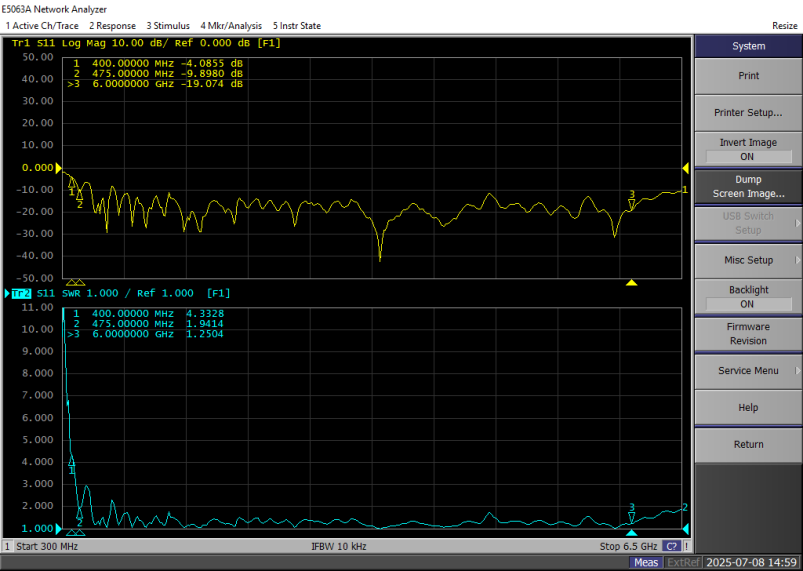

2.1 VSWR

400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

5500MHz
7000MHz

Product Tags:

400-6000MHz Directional Antenna
