703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through

Brand Name : Leenz

Model Number : LZANT-11092-A

Certification : RoHs

Place of Origin : China

MOQ : 2

Payment Terms : T/T

Supply Ability : 200 per day

Delivery Time : 15 days

Frequency : 703-803MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

703-803M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through directional orientation.

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization ±45°
Horizontal Beamwidth 90±5°
Vertical Beamwidth 20±5°
F/B >20dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 8*N-K
Dimension φ400*1200mm
Radome material Fiberglass
Weight 17Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through

2.2 Total Efficiency & Gain:


Port 1

Port 2

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

703

10.7

703

10.3

710

10.7

710

10.4

720

11.0

720

10.8

730

11.5

730

11.3

740

11.7

740

11.5

750

11.5

750

11.3

760

11.5

760

11.3

770

11.6

770

11.6

780

11.6

780

11.8

790

11.7

790

11.8

800

11.9

800

11.9

803

11.9

803

11.8

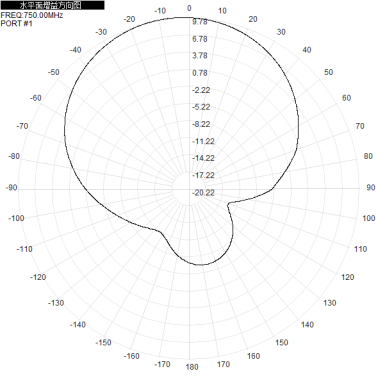

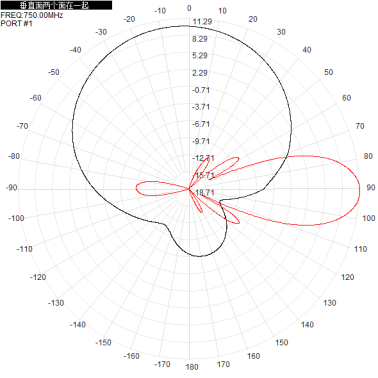

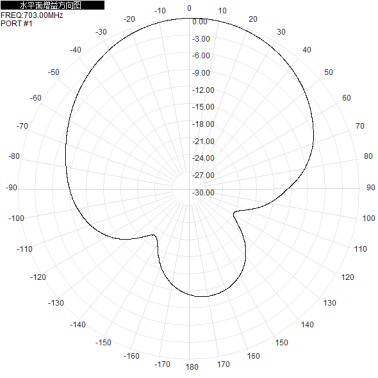

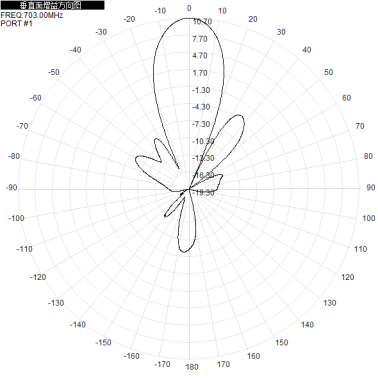

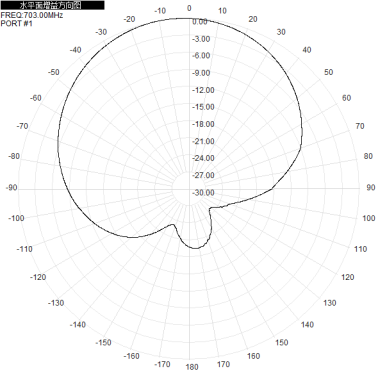

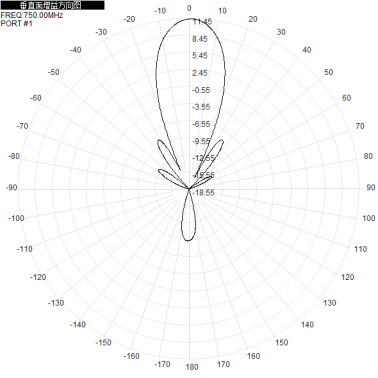

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
703MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through
750MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through
800MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through


Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
703MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through
750MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through
800MHz 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through 703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through
