Name: 380 450M 11dbi dualpolarized directional antenna 45 base station sector antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10949-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 200 per day

Delivery Time : 15 days

Frequency : 380-450MHz

VSWR : <2.0

Peak Gain : 11dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	380-450MHz
S.W.R.	<2.0
Antenna Gain	6dBi
Polarization	±45°
Horizontal Beamwidth	90±10°
Vertical Beamwidth	25±5°
F/B	>16dB
Impedance	50Ohm
Max. Power	100W
B. Material & Mechanical Characteristics
Connector Type	2*N-K
Dimension	1500410135mm
Radome material	UPVC
Weight	18.1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	60m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
PORT-1 +45

380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna

PORT-2 -45

380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna

2.2 Total Efficiency & Gain:

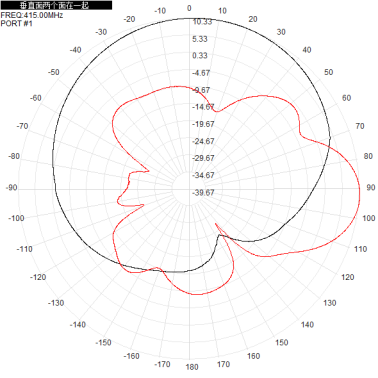

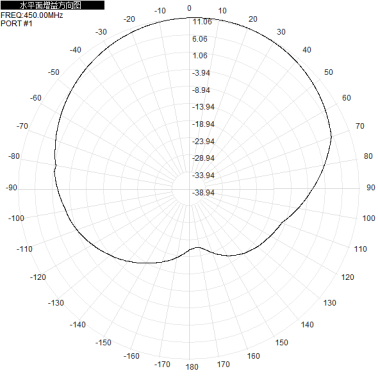

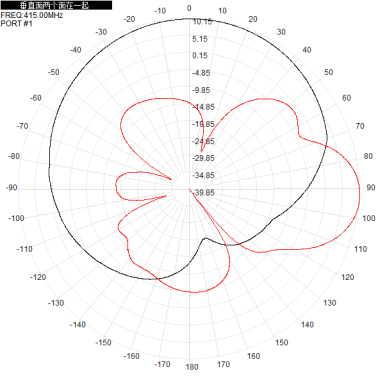

2.3 Radiation Pattern
